Give Color to Van's Plans

This is a simple utility to highlight each unique part number on a given page and give it a random color. This makes it easy to find the matching part numbers in the text description with the graphical depiction.

Click to start new upload

For best results visit Van's Aircraft and download the most recent PDF's

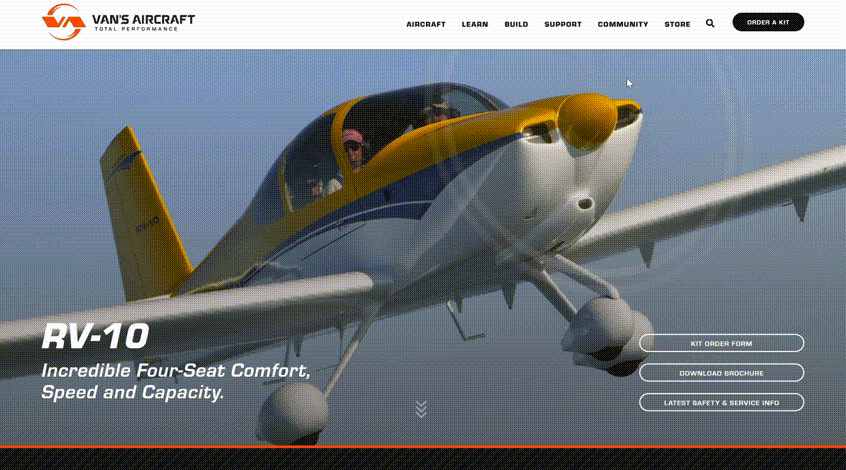

At Vansaircraft.com click on Store

Ensure you are logged into your store account and click the dropdown arrow next to your name.

Click on My Aircraft and a new page will open.

Click the link to Download Kit Plans. A list of links to download each section will be available.

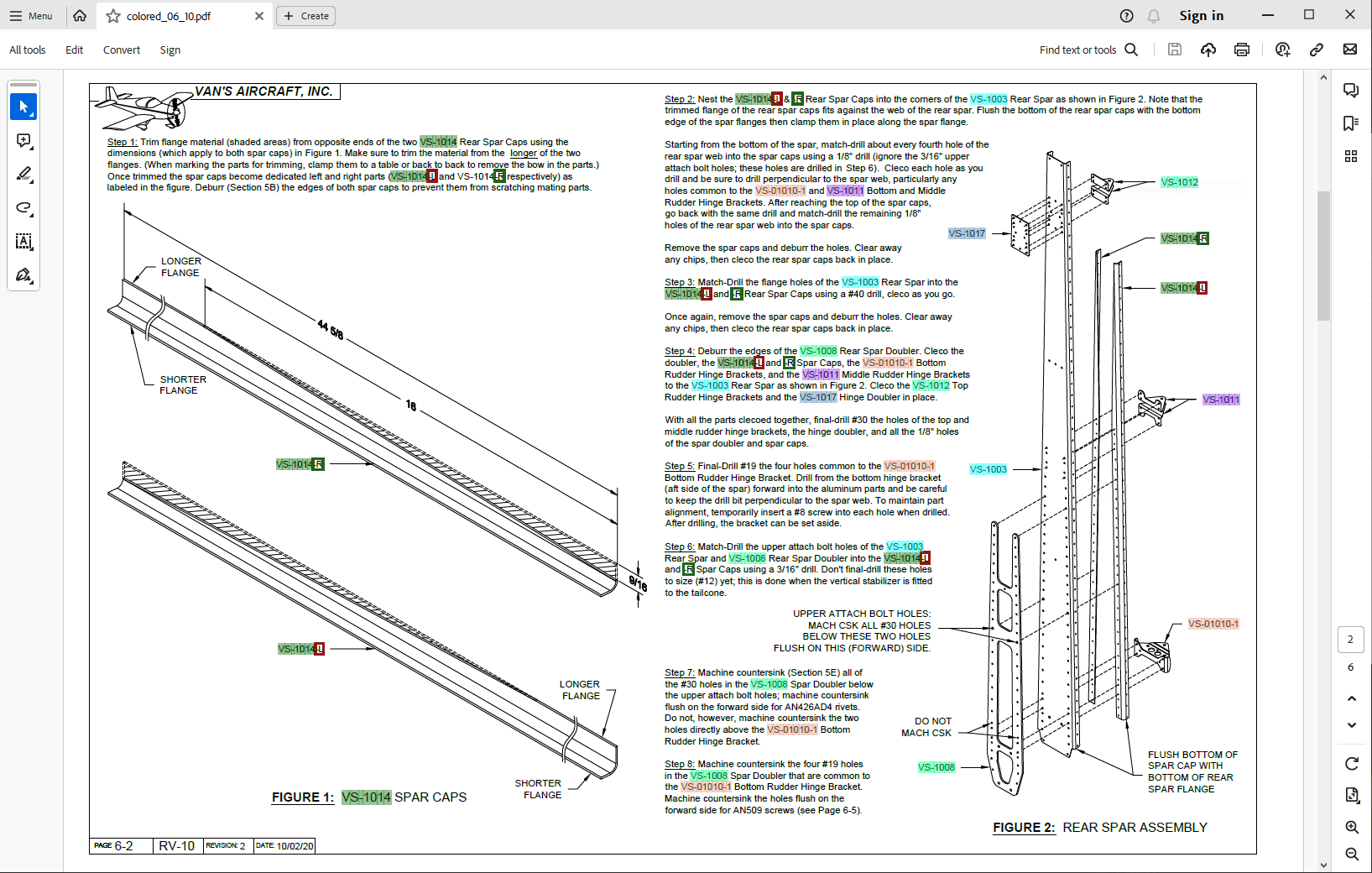

Examples Below

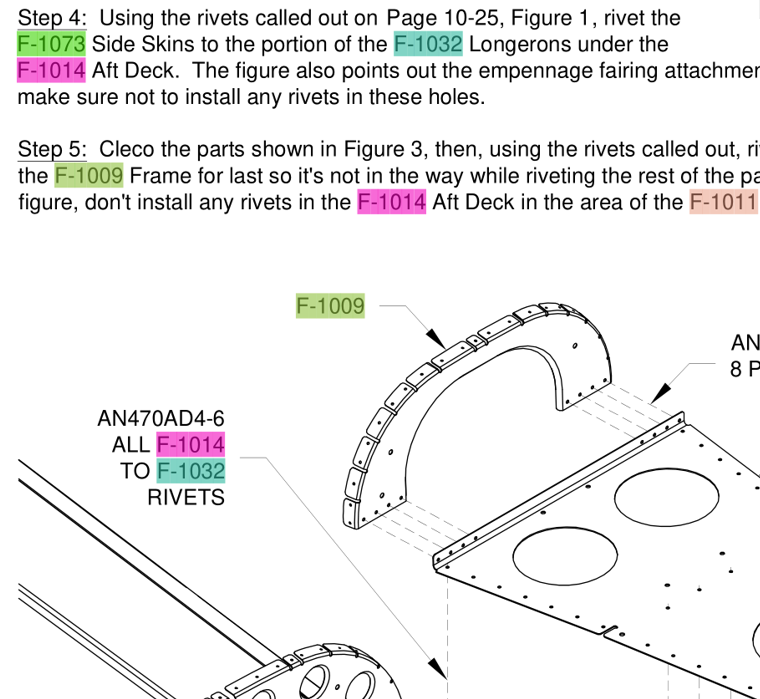

Easily move your eye from the instructions such as Step 5, part number "F-1009" to the graphic.

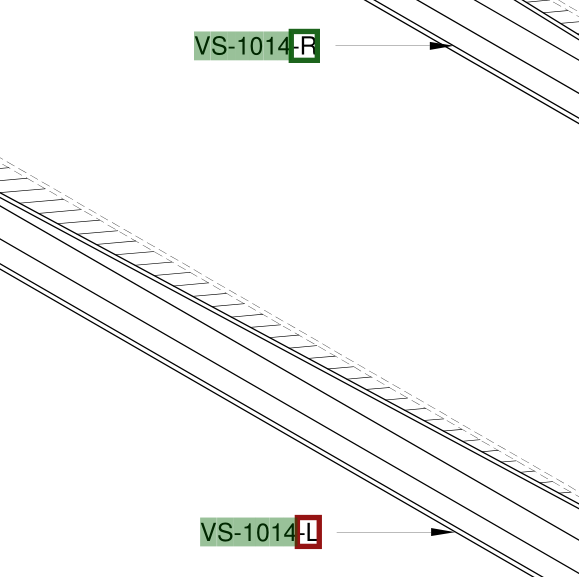

Left and right parts will be a common color. All "-L" designations will have a red border and all "-R" designations will have a green border
